3200 Q-TRAP MPX-2

Mass Spectrometer
Click to enlarge
Click to enlarge


Applied Biosystems

Data Sheet:ABI 3200 Data Sheet.pdf

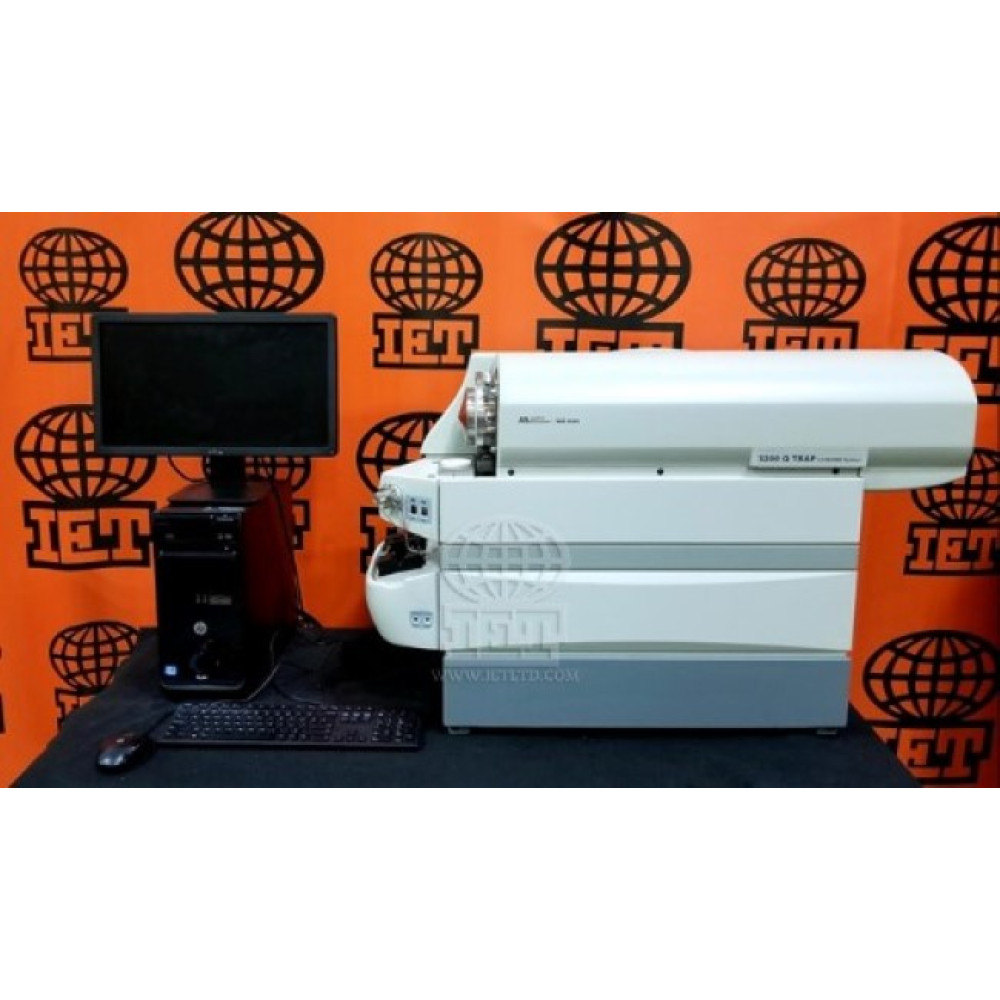

Refurbished AB/Sciex API 3200 QTRAP LC/MS/MSn mass spectrometer system (p/n 1031491) complete with turbo V source (p/n 1025134J), ESI probe, and vacuum pump. Also including Refurbished Sciex MPX-2 high pressure LC system complete with (4) LC-20AD XR, (2) SIL-20AC XR, (2) DGU-20A5, CTO-20AC, and PC workstation including Multiquant, Analyst & MPX setup software.

With the MPX-2, run up to 2,300 samples unattended.

Patented hybrid triple quadrupole/linear ion trap technology takes you far beyond the capabilities of any conventional ion trap, enabling you to screen, identify, and quantitate proteins or small molecules in a single analysis. By combining true triple quadrupole scanning functionality with sensitive linear ion trap scans, you can reduce analysis time and get more information from every experiment.

Performance/Throughput
*Mass Accuracy (with internal reference): 20 mmu
*Dynamic Range: 1 cps to 4x106 cps (pulse counting)
*Mass Range: m/z 5-1,700-quad mode and 50-1,700- linear ion trap mode
*Scan speed: up to 2400 amu/sec in quad mode, up to 4000 amu/sec in linear ion trap mode

With a linear dynamic range of four orders of magnitude, the 3200 Q TRAP system provides the quantitation performance that triple quadrupole LC/MS/MS systems are known for. The system performs Multiple Reaction Monitoring (MRM) scans for highest quantitative sensitivity. Please contact us with complete used/refurbished 3200 QTRAP(QTRAP 3200) system details. (AB/Sciex Q-TRAP 3200, Sciex 3200 Mass Spec)
